LEDモジュール

産業分野のみならず、農業分野、医療・ライフサイエンス分野において
必要とされる特殊な波長や高出力なLEDを供給しています。

Chip On Board高出力・多波形LED

お客様のご要望を叶えるためのカスタムLED

LED Type

LED Package

PO

Beam Angle

Chip On Board高出力・多波形LED

お客様のご要望を叶えるためのカスタムLED

Product	IF	PO	VF	Wavelength	LED Size	Beam Angle	Data Sheet

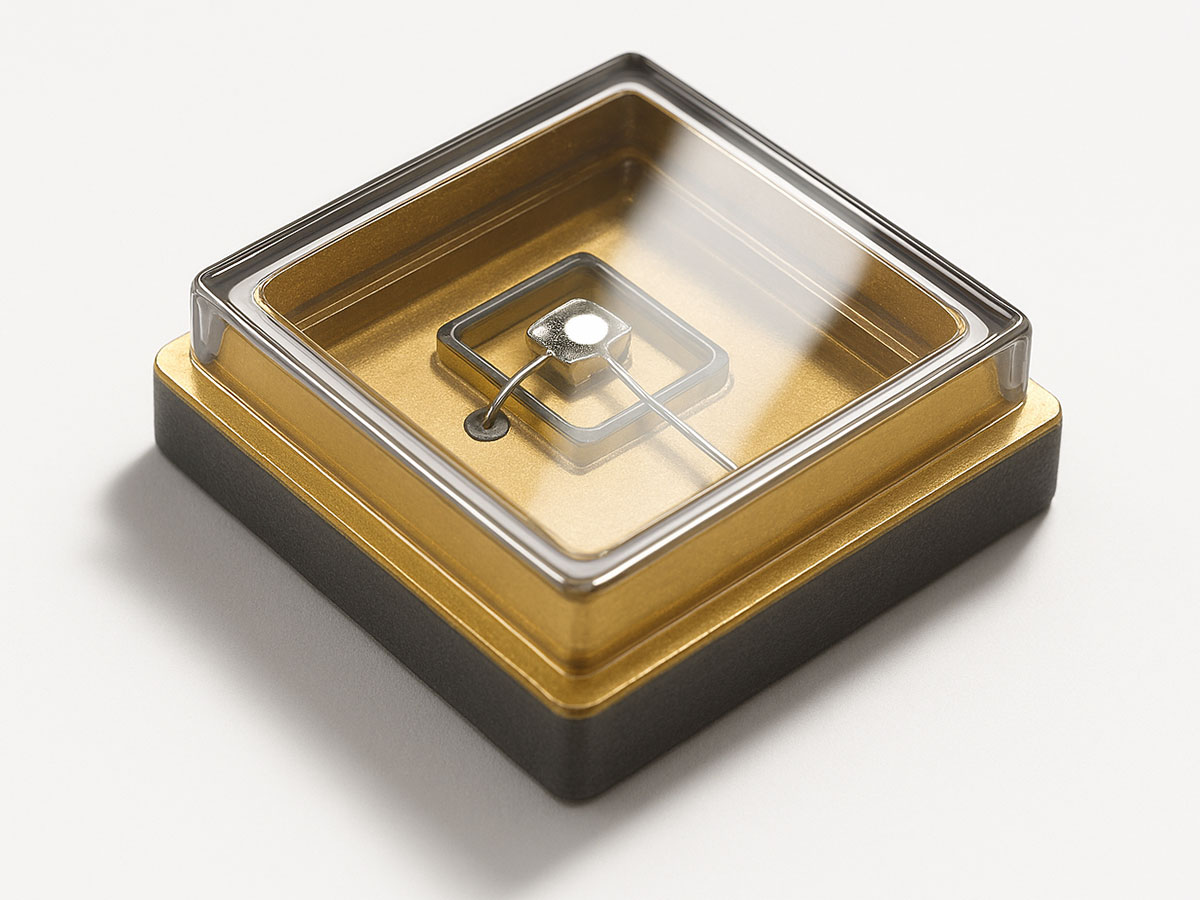

35FCF275P2AN00 IF: 20mA PO: 1.5 - 3mW VF: 5.5 - 8.0V Wavelength: 270 - 280nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	20mA	1.5 - 3mW	5.5 - 8.0V	270 - 280nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCC27501CN00 IF: 100mA PO: 10mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	100mA	10mW	5.0 - 9.0V	260 - 270nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCC27501CN00 IF: 100mA PO: 10mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	100mA	10mW	5.0 - 9.0V	270 - 280nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCC27501C000 IF: 100mA PO: 20mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	100mA	20mW	5.0 - 9.0V	270 - 280nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCC27501CN00 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	100mA	8 - 16mW	5.0 - 9.0V	270 - 280nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF27501CN00 IF: 100mA PO: 10mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	100mA	10mW	5.0 - 9.0V	270 - 280nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF28501CN00 IF: 100mA PO: 20mW VF: 5.0 - 9.0V Wavelength: 280 - 290nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	100mA	20mW	5.0 - 9.0V	280 - 290nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF25502D000 IF: 350mA PO: 50mW VF: 5.0 - 9.0V Wavelength: 250 - 260nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	350mA	50mW	5.0 - 9.0V	250 - 260nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF26502D000 IF: 350mA PO: 50mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	350mA	50mW	5.0 - 9.0V	260 - 270nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF26502DN00 IF: 350mA PO: 50mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	350mA	50mW	5.0 - 9.0V	260 - 270nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF27502D000 IF: 350mA PO: 50mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	350mA	50mW	5.0 - 9.0V	270 - 280nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF27502DN00 IF: 350mA PO: 50mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	350mA	50mW	5.0 - 9.0V	270 - 280nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
35FCF27503F000 IF: 500mA PO: 90mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.5 x 3.5mm Beam Angle: Flat	500mA	90mW	5.0 - 9.0V	260 - 270nm	3.5 x 3.5mm	Flat	— お問合せ	お問合せ
3939X25501C000 IF: 100mA PO: 8-16mW VF: 5.0 - 9.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	100mA	8-16mW	5.0 - 9.0V	250 - 260nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ

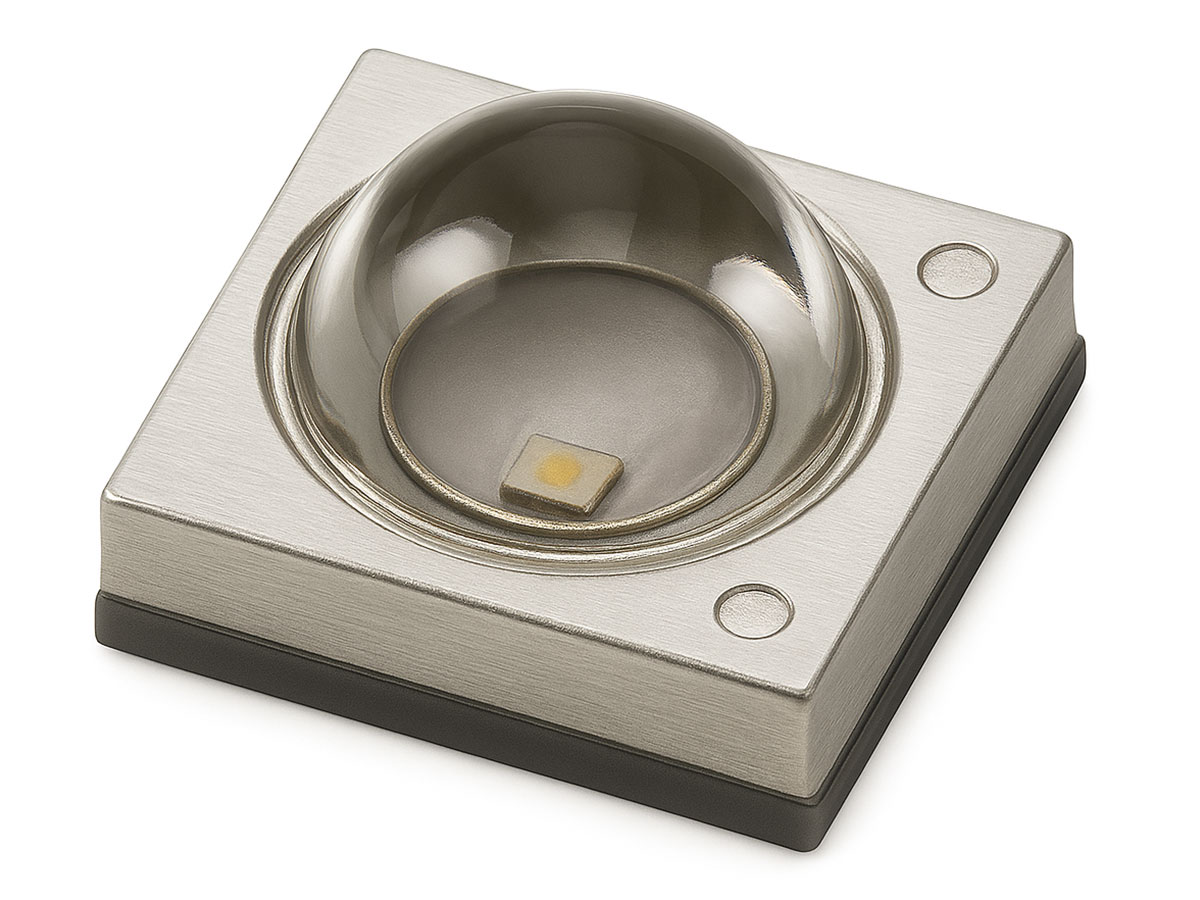

3939X25501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	100mA	8 - 16mW	5.0 - 9.0V	250 - 260nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X25501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	100mA	8 - 16mW	5.0 - 9.0V	250 - 260nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X25501CN00 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	100mA	8 - 16mW	5.0 - 9.0V	260 - 270nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X25501CN00 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	100mA	8 - 16mW	5.0 - 9.0V	260 - 270nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X25501CN00 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	100mA	8 - 16mW	5.0 - 9.0V	260 - 270nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X26501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	100mA	8 - 16mW	5.0 - 9.0V	260 - 270nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X26501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	100mA	8 - 16mW	5.0 - 9.0V	260 - 270nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X26501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	100mA	8 - 16mW	5.0 - 9.0V	260 - 270nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X27501CN00 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	100mA	8 - 16mW	5.0 - 9.0V	270 - 280nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X27501CN00 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	100mA	8 - 16mW	5.0 - 9.0V	270 - 280nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X27501CN00 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	100mA	8 - 16mW	5.0 - 9.0V	270 - 280nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X27501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	100mA	8 - 16mW	5.0 - 9.0V	270 - 280nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X27501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	100mA	8 - 16mW	5.0 - 9.0V	270 - 280nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X27501C000 IF: 100mA PO: 8 - 16mW VF: 5.0 - 9.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	100mA	8 - 16mW	5.0 - 9.0V	270 - 280nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X28501CN00 IF: 100mA PO: 20mW VF: 5.0 - 9.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	100mA	20mW	5.0 - 9.0V	280 - 290nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X28501CN00 IF: 100mA PO: 20mW VF: 5.0 - 9.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	100mA	20mW	5.0 - 9.0V	280 - 290nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X28501CN00 IF: 100mA PO: 20mW VF: 5.0 - 9.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	100mA	20mW	5.0 - 9.0V	280 - 290nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X25502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	350mA	40 - 60mW	6.0 - 8.0V	250 - 260nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X25502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	350mA	40 - 60mW	6.0 - 8.0V	250 - 260nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X25502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 250 - 260nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	350mA	40 - 60mW	6.0 - 8.0V	250 - 260nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X26502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	350mA	40 - 60mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X26502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	350mA	40 - 60mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X26502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	350mA	40 - 60mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X26502DN00 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	350mA	40 - 60mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X26502DN00 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	350mA	40 - 60mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X26502DN00 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	350mA	40 - 60mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X26502D000 IF: 350mA PO: 90mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	350mA	90mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X26502D000 IF: 350mA PO: 90mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	350mA	90mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X26502D000 IF: 350mA PO: 90mW VF: 6.0 - 8.0V Wavelength: 260 - 270nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	350mA	90mW	6.0 - 8.0V	260 - 270nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939X27502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	350mA	40 - 60mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939X27502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	350mA	40 - 60mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939X27502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	350mA	40 - 60mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939F27502DN00 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	350mA	40 - 60mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
3939F27502DN00 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: 60°	350mA	40 - 60mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	60°	— お問合せ	お問合せ
3939F27502DN00 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 270 - 280nm LED Size: 3.9 x 3.9mm Beam Angle: Flat	350mA	40 - 60mW	6.0 - 8.0V	270 - 280nm	3.9 x 3.9mm	Flat	— お問合せ	お問合せ
3939F28502D000 IF: 350mA PO: 40 - 60mW VF: 6.0 - 8.0V Wavelength: 280 - 290nm LED Size: 3.9 x 3.9mm Beam Angle: 30°	350mA	40 - 60mW	6.0 - 8.0V	280 - 290nm	3.9 x 3.9mm	30°	— お問合せ	お問合せ
